Prediction of interior ballistic parameters of gun and mortars
Use the interior ballistics analysis to:
- Determine muzzle velocity and maximum pressure in gun or mortars
- Trade-off propellant weight versus projectile weight in gun or mortars
- Estimate the effects of propellant blending in gun or mortars
The Interior Ballistics analysis calculates the velocity, breech and base pressure, linear accelerations of the projectile during travel down the barrel. A blend of up to three propellant types can be simulated.
Reference libraries are included with detailed information on propellant geometry and burn characteristics as well as igniter and gun parameters. This information can be retrieved quickly for use in analyses.
Program IBGUN should enable:
-

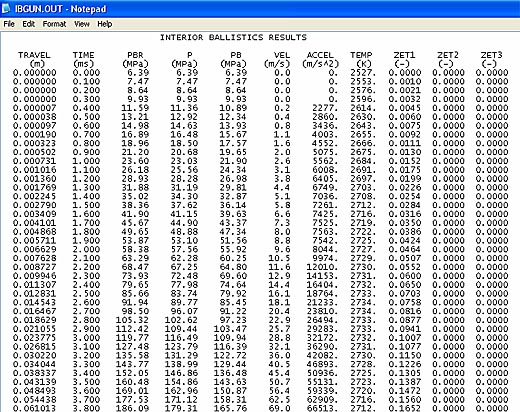

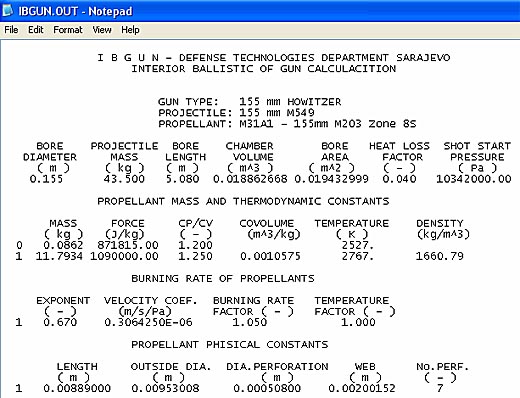

The Interior Ballistics analysis calculates the velocity, breech and base pressure, accelerations of the projectile during travel down the barrel, using model STANAG 4367, Edition 2, Termodynamic Inetrior Balistic Model with Global Parameter

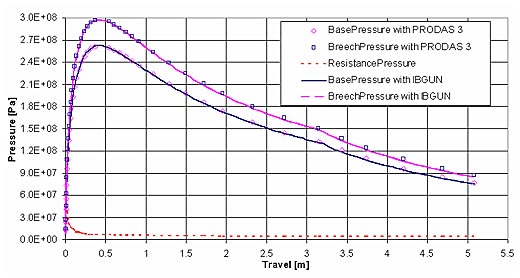

A comparision of base and breech presure-travel predictions for two different ballistic codes for projectile 155 mm M549

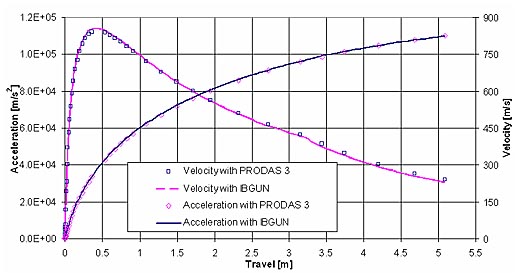

A comparision of acceleration and velocity-travel predictions for two different ballistic codes for projectile 155 mm M549
Program IBMORTAR should enable:
-
The Interior Ballistics analysis calculates the velocity, breech and base pressure, accelerations of the projectile during travel down the barrel.

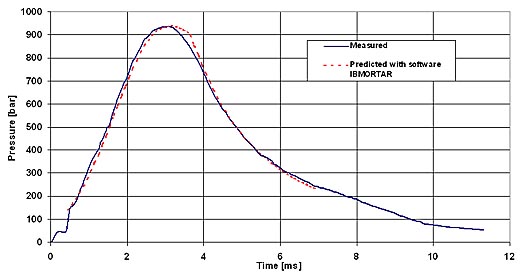

A comparision of breech presure-travel for motrtar 120mm M74 and projectile 120 mm M62P3
